SVL65-2
Call for Pricing

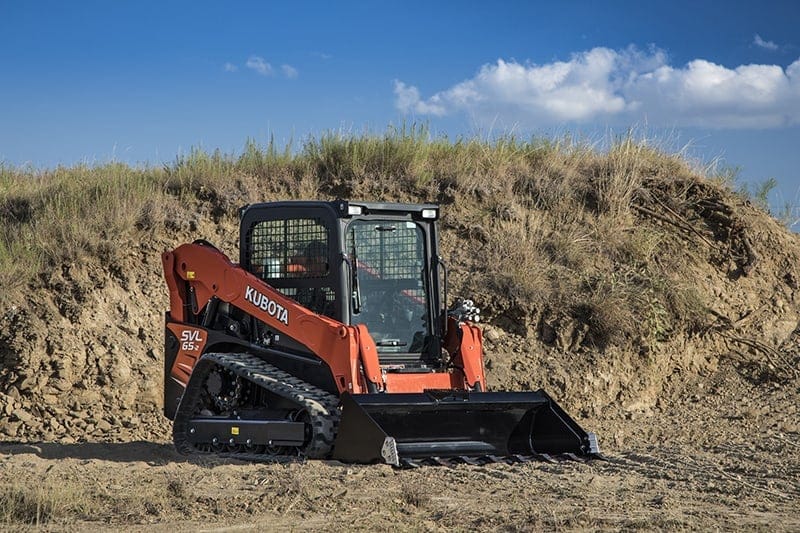

Don’t just finish the job. Dominate it behind the controls of the Kubota SVL65-2. Whether hardscaping or landscaping, you’ll experience nimble maneuverability, power and comfort in the orange track loader. Advanced hydraulics and 68.3 horsepower ensure you won’t have to back down from a challenge and the SVL65-2 loves a good challenge.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
Save Up to $6,200 or 0% A.P.R. For Up to 48 Months With 0% Down on SVL Series!**
TRACK LOADERS
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $8,500 on Construction Equipment!
Construction
description can go here...
Specs & Compare
Compare models.
SVL65-2
HP
Call for Pricing
Specifications
Auxiliary Hydraulic Pressure, psi (bar)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Bucket Breakout Force, lbf (kg)
Displacement cu. in. (cc)
Ground Clearance, in (mm)
Ground Contact Pressure, psi (kPa)
Ground Pressure, (psi)
Height to Hinge Pin, in (mm)
Horsepower (gross)
Lift Arm Breakout Force, lbf (kg)
Lift Arm Path
Operating Weight, lbs (kg)
Operator Station
Overall Height, in (mm)
Overall Length, in (mm)
Overall Width, in (mm)
Rated Operating Capacity (ROC), lbs (kg)
Tipping Load, lbs (kg)
Track Ground Contact Length, in. (mm)
Track Rollers (per side)
Track Width (standard/wide), in. (mm)
Traction Force, lbf (kgf)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Auxiliary Hydraulic Pressure, psi (bar)
3263 (229.4)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
17.4 (65.8) / 27.0 (102.2)
Bucket Breakout Force, lbf (kg)
4614 (2093)
Displacement cu. in. (cc)
159.6 (2615)
Ground Clearance, in (mm)
9.1 (233)
Ground Contact Pressure, psi (kPa)
Standard: 5.0 (34.5) Wide: 4.2 (30)
Ground Pressure, (psi)
Standard: 5.0 Wide: 4.2
Height to Hinge Pin, in (mm)
118.5 in (3009.9)
Horsepower (gross)
68.3
Lift Arm Breakout Force, lbf (kg)
4266 (1935)
Lift Arm Path
Vertical
Operating Weight, lbs (kg)
8135 (3690) / 8631 (3915)
Operator Station
Open cab / closed cab
Overall Height, in (mm)
79.9 (2029)
Overall Length, in (mm)
136.4 (3465)
Overall Width, in (mm)
Vehicle Width With Bucket: 68 (1727) / 74 (1880)
Rated Operating Capacity (ROC), lbs (kg)
35% Tipping Load (lbs): 2100 (953)
Tipping Load, lbs (kg)
6000 (2722)
Track Ground Contact Length, in. (mm)
57.9 (1470)
Track Rollers (per side)
4
Track Width (standard/wide), in. (mm)
12.6 (320) / 15.0 (380)
Traction Force, lbf (kgf)
8406 (3813)
Traveling Speed: High, mph (kph)
7.1 (11.5)
Traveling Speed: Low, mph (kph)
4.9 (7.8)
